Features
1 This compact platform design (front view breadth 1, 254mm) assure flexible line arrangement in your site
2 Both new designed 10 inline multi-heads and new recognition system ensure 6, 000CPH(0.1sec/CHIP Equivalent: Optimum condition)
3 Maximum feeder capacity 120 lanes
4 Applicable to large size PCB(L510mm X W460mm)
5 Built-in tape cutter available as an option

Specifications:

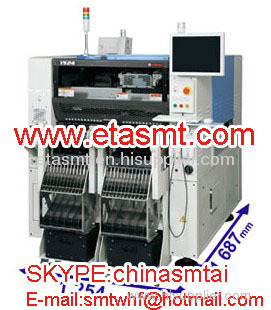

Model: YS12 (Model: KHY-000)
Applicable PCB: L510X~W460mm to L50X~W50mm
Through-put (Optimum): 36, 000CPH(0.1sec/CHIP Equivalent)
Mounting accuracy (Yamaha's standard components): Absolute accuracy (μ +3σ ): +/-0.05mm/CHIP Repeatability(3σ ): +/-0.03mm/CHIP
Applicable components: 0402(Metric base) to 32*mm components (Note 1)*Correspondence since Jan., 2010
Number of component types: 120 types(Max, 8mm tape reel conversion)
Power supply: 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source: 0.45MPa or more, in clean, dry states
External dimension(Note 2): L1, 254~W1, 440~H1, 450mm(cover top) L1, 464(End of extension conveyor)xW1, 542(End of guide for feeder carriage)xH1, 450mm(cover top)
Weight Approx.: 1, 340kg
