SMT JUKI JX-100LED chip mounter/LED Assembly system JX-100LED ETA e8 manufacturer from China Shenzhen ETA electronic equipment co.,ltd

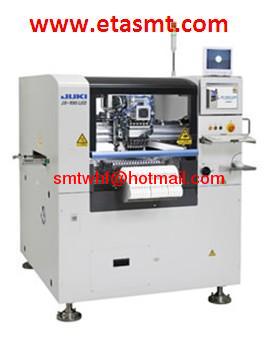

SMT JUKI JX-100LED chip mounter/LED Assembly system JX-100LED

Price:	1.0 USD
Payment Terms:	T/T,L/C,
Special Groups:	Chip mounter (25)
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ETA e8

Production Capacity: 100set/month

Delivery Date: 30days

Means of Transport: Ocean,

Packing: wooden box

Color: Gery

Main product :Reflow solder,BGA Solder Reflow Oven,smt reflow solder,reflow oven,smt reflow oven,smt machine,smt furnace,smt reflow solder oven,smt eq

Compact but with 800×360 mm long board size capacity, realizing low cost placement of Note PC, LCD monitor backlight, lighting appliance and LED

Superior Cost PerformanceSuperior Flexibility

High Speed Installation 2 Functionality

Compact and less weight

Superior Versatility

User Friendly

Specifications

Board size : Min.50×50

Max.800×360mm*1

Component height :12.0mm*2

Component size : Min. 0603mm(0201 Inch) Max. 33.5mm

Component centering device :Laser centering (LNC60)

Placement speed (chip)

Optimum : 19,300CPH

IPC9850 : 15,300CPH

Placement accuracy : ±0.05 mm (±3σ)

Feeder inputs : Max. 30 8mm tape feeders, 60 with optional rear bank.

1 : When sent through twice. When sent through once, the maximum length is 410 mm x 360 mm

2 : Becomes 9.0 mm when the board's x directional length exceeds 630 mm.
