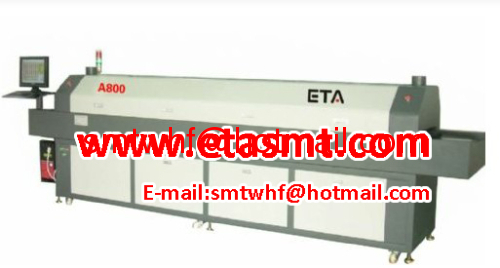

lead-free reflow oven A800
Heating System
> Eight groups of top and bottom forced hot air convection heating zones.
> Patented heating plates in each zone uniformly transfer heat to the PCBs using forced hot air convection.
> Independent temperature control in each zone to ensure temperature uniformity within the process tunnel.
> Power consumption savings of 1/3 as compared to other systems.
> Patented motorized blower in each zone is designed to ensure stable air pressure, withstand high process temperature and is disturbance-free.
> Audible and light tower alarm for temperature limits and blower malfunction.
> Fast start-up (within 20 minutes) from room temperature to work temperature due to the high efficiency of the motorized heating plates.
Cooling System
> Two (2) groups of air fans convection cooling zones.
> Mesh belt conveyor system
> Closed-loop computer control of the conveyor provides a precise and repeatable reflow process.
Control System
> PC control system with windows based control software.
>Lenove Computer and Siemens PLC
Additional Features
> Integrated UPS will be automatically activated in case of main power failure and will keep control PC and conveyor running for minimum 5 minutes to send out PCBs inside the oven tunnel.
> Three (3) profiling ports and integrated profiling software are designed for convenient temperature profiling.
> Swing arm control PC station
> Two (2) emergency stop switches
> Two (2) exhaust ports

Specifications A-800(Mid-sized 8-Zone)
General
Outside Dimension(L*W*H) : 3600x720x1250mm
Standard Color : Computer Grey
Weight : Approx.420KG
Number Of Heating Zones : Up8/Bottom8
Length Of Heating Zones : 2300mm
Exhaust Volume : 10M3/minx2 Exhausts
Standard Feature Of Control System
Electric Supply Required : 3phase,380V 50/60Hz
Power For Warm : Up 11KW
Power Consumption : 4KW
Warming Time : Approx.20 minute
Temp. Setting Range : Room Temp. --- 300℃
Temperature Control Method : PID Close Loop Control + SSR Driving
Temperature Control Precision : ± 1.0℃
